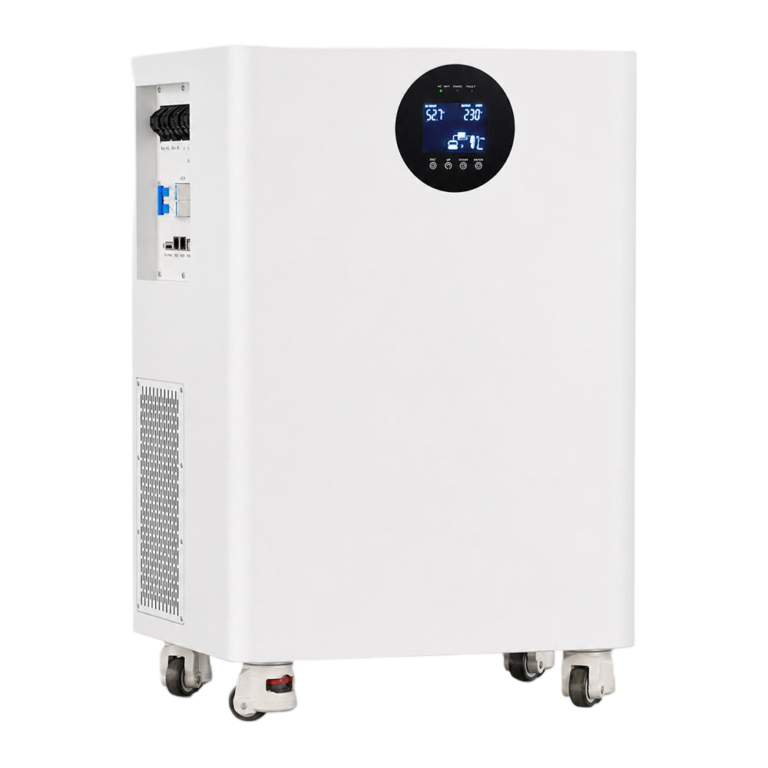

AIO off-grid Residential ESS
Streamline your clean energy transition with our integrated off-grid energy storage system. Combining a high-efficiency inverter and long-life battery storage into a sleek, plug-and-play unit, it supports seamless charging from both solar panels and the grid. Designed for fast installation and reliable backup power. 500kW/1kWh up to 12kW/16kWh.
Product Features
Easy installation
Significantly reduces labor costs, site space, and installation complexity
All-in-One Integration
Integrates a high-performance inverter and lithium battery storage into a compact chassis—no mess, no complex setup
Dual Charging Capabilities
Flexibly powered by PV solar energy and grid utility to ensure 24/7 continuous power availability.
Smart monitoring
Wifi for Bluetooth, Remote updates & self-diagnosis
Ultra safe
Tier 1 LiFePO4 cell, built-in intelligent BMS, circuit breaker
Technical Specifications
Battery Type: LiFePO4
Capacity: 100 / 200 / 280 / 314 Ah
Nominal Voltage: 25.6V / 51.2V
Total Energy: 2kW/4kWh, 5kW/5 kWh, 5kW/8 kWh, 6kW/10 kWh, 6kW/16 kWh, 12kW/16 kWh
Charge/Discharge Current: 100A / 200A / 200A / 200 A
Cycle Life: >8000 Cycles @90% DOD
Operating Temperature: 0°C~50°C Charge -20°C ~50°C Disharge
Ingress Protection: IP20
Certification: UL1973, UL9540A, CEI 0-21, UKCA, IEC62619, C10/11, MSDS, UN38.3
