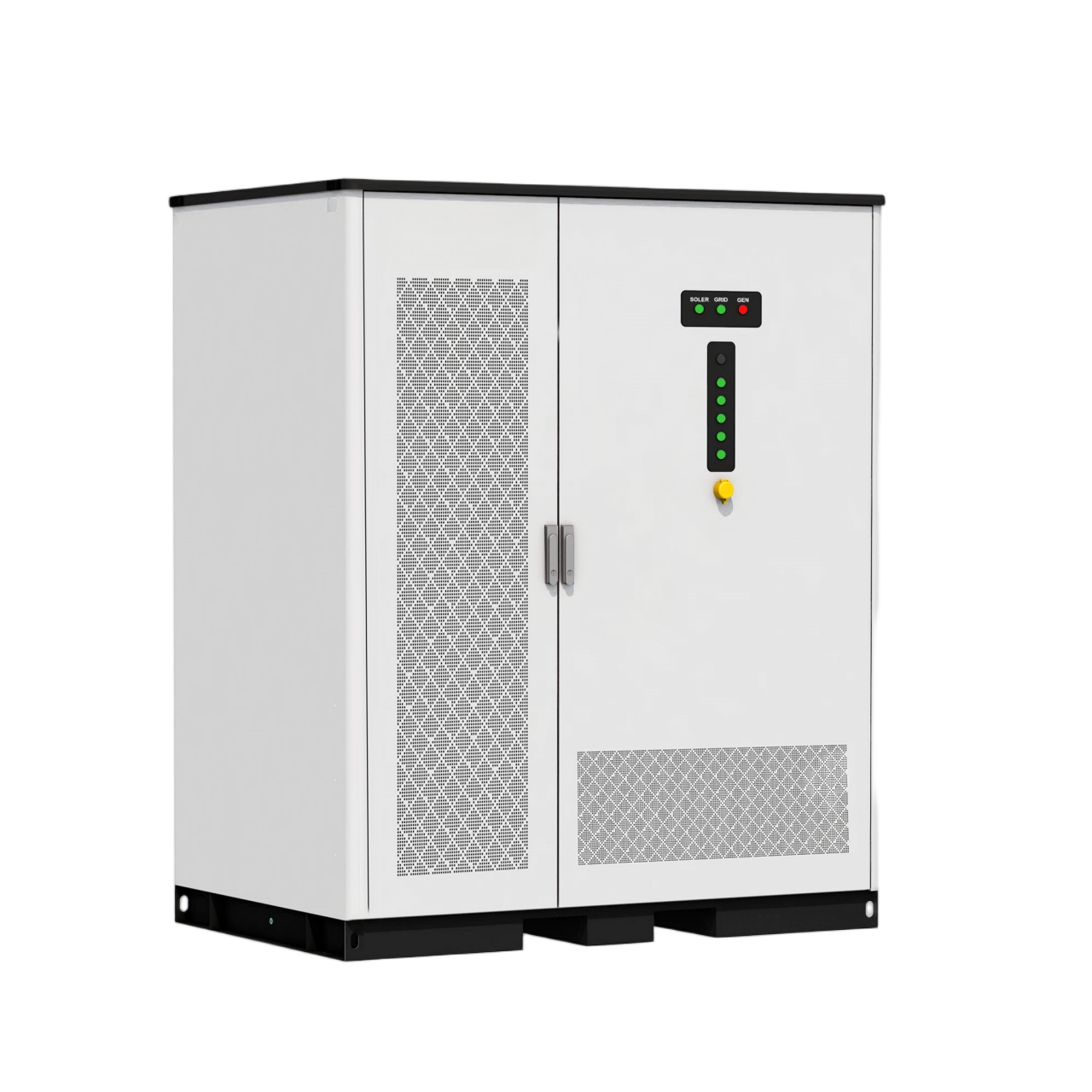

125kW/261kWh & 250kW/522kWh C&I All-in-One Liquid-Cooled Energy Storage System
A high-performance commercial and industrial energy storage system integrating battery, PCS, EMS and thermal management in one cabinet. Supporting Grid/PV/DG charging, it provides reliable energy storage solutions for peak shaving, renewable energy utilization, backup power and microgrid applications. Built with advanced LFP battery technology, the system ensures high safety, efficiency and flexible deployment.
Product Features
Multiple Energy Input Support
Supports charging from Grid, PV and Diesel Generator (DG), enabling flexible energy management and reliable power supply.
Fast Deployment, Easy Expansion
Modular. A single cabinet can be expaned to Megawatts.
High ROI
Supports peak shaving, demand response, and grid expansion for max revenue.
Longer Battery Life = Lower Costs
Uniform cooling minimizes cell aging, helping extend battery cycle life and reduce replacement costs.
Smart monitoring
Efficient management for remote monitoring, troubleshooting, and data analysis.
Technical Specifications
Battery Type: LiFePO4
Battery cell Capacity: 314 Ah
Nominal Voltage: 832 V
Total Energy: 261 kWh 522kWh
Rated output power: 125 kW 240kW
Cooling method: Liquid cooling
THDi: ≤3%
Cycle Life: >8000 Cycles @90% DOD
Operating Temperature: 0°C~50°C Charge -20°C ~50°C Disharge
Ingress Protection: IP55
Certification: UL1973, UL9540A, CEI 0-21, UKCA, IEC62619, C10/11, MSDS, UN38.3
