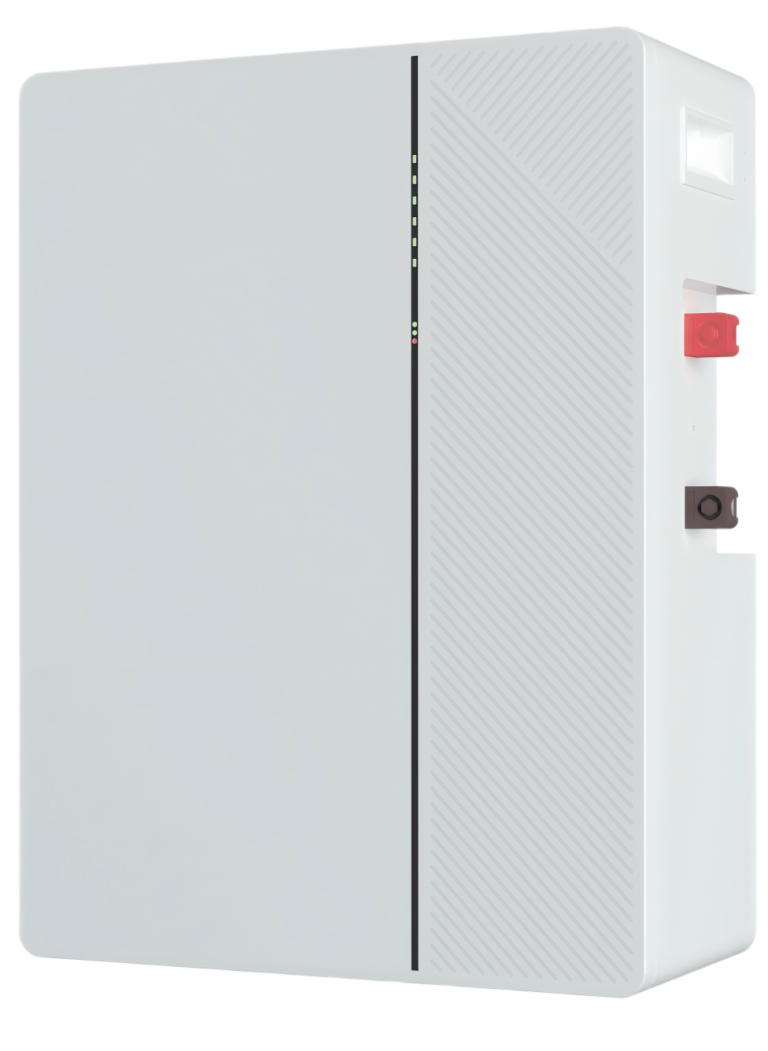

S05 Residential ESS
The Low Voltage Home Energy Storage Battery is designed specifically for residential solar applications. Built with grade A LiFePO4(LFP) battery cells, intelligent BMS, circuit breaker to ensure long service life, high efficiency and excellent safety performance for daily household use. It supports 16 units in parallel. Compatible with VPP, EV, and diesel generators. On-grid, off-grid and hybrid operation modes. Ideal for homeowners seeking to increase solar self-consumption, reduce electricity bills and secure backup power during grid outages.
Product Features
Easy installation
Support wall-mounted, floor-mounted installations, high space utilization
Strong Compatibility
Match with mainstream hybrid / on grid / off grid inverter system (Deye, Growwatt, Sol-Ark, Solis, Luxpower, Victron., etc)
Modular & Scalable
Up to 16 units in parallel. 5.12~512kwh capacity.
Smart monitoring
Wifi for Bluetooth, Remote updates & self-diagnosis
Ultra safe
Tier 1 LiFePO4 cell, built-in intelligent BMS, circuit breaker
Technical Specifications
Battery Type: LiFePO4
Capacity: 100 / 200 / 280 / 314 Ah
Nominal Voltage: 51.2V
Total Energy: 5.12 kWh / 10.24kWh / 14.33kWh / 16.07kWh
Scalability: 16 pcs in a parallel
Charge/Discharge Current: 100A / 200A / 200A / 200 A
Cycle Life: >8000 Cycles @90% DOD
Operating Temperature: 0°C~50°C Charge -20°C ~50°C Disharge
Ingress Protection: IP20
Certification: UL1973, UL9540A, CEI 0-21, UKCA, IEC62619, C10/11, MSDS, UN38.3
