BF200 280Ah high density ESS

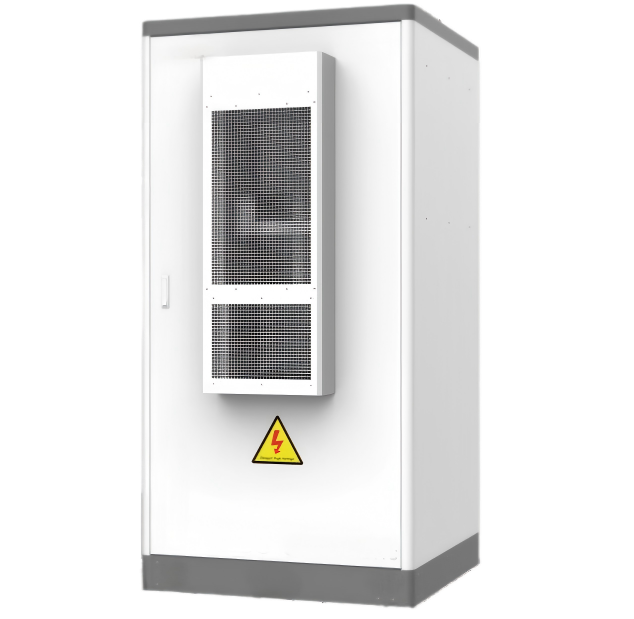

The 215/225/241kWh air-cooling IP55 outdoor DC BESS cabinet is equipped with a wall-mounted hybrid inverter to achive AC output. It enables peak shaving, load management, dynamic capacity expansion, and backup power. It supports grid-tied, off-grid, hybrid solar PV systems and diesel generators. Ideal for office buildings, commercial complexes, data centers, logistics hubs, manufacturing plants, energy-intensive facilities, campus-level storage, and virtual power plants.
Product Features
Simple O&M
Modular design, side outlet mode, easy to install, and easy to maintain
Expandable
A single DC cabinet can be expaned to Megawatts.
Versatile Features
Optional PV, off-grid, inverter, STS and other accessories are available for microgrid and other scenarios.
High ROI
Supports peak shaving, demand response, and grid expansion for max revenue.
Smart monitoring
Efficient management for remote monitoring, troubleshooting, and data analysis.
Technical Specifications
Battery Type: LiFePO4
Capacity: 280 / 314 Ah
Nominal Voltage: DC 716.8 / 768 V
Total Energy: 215 / 225 /241 kWh
Rated charge / discharge current: 140 / 157 A
Cooling method: Air cooling
Cycle Life: >8000 Cycles @90% DOD
Operating Temperature: 0°C~50°C Charge -20°C ~50°C Disharge
Ingress Protection: IP55
Certification: UL1973, UL9540A, CEI 0-21, UKCA, IEC62619, C10/11, MSDS, UN38.3
